At the level of process-to-process communication there is the thorny problem of defining a resource independent protocol for communicating resource access (capabilities). Several approaches to this problem are discussed, including a solution based on public key encryption.
At the level of human-to-process communication there is a similar problem of communicating access to resources. Here a person at a terminal needs to be able to indicate which resources should be made available to the processes performing a requested task. The advantages of a discriminating domain control at the process level are largely wasted if the human-to-process protocols fail to address this important issue.
The other half of resource management is assuring that people and processes are not granted access to resources that they do not need or are not authorized to use. System users seldom complain too loudly about being granted access to resources that they do not need or are not authorized to access. Because of this, OS implementers tend to ignore this control aspect of resource management until its indirect effects become apparent. It is the control aspect of resource management that we will consider here.
As distributed systems increase in size, the adverse effects of inadequate control of resource access accumulate until they can not be ignored. The economic effect is that scarce resources will be consumed by users with little need (e.g., the U.S. gasoline shortage). The reliability effect is that local failures can have devastatingly global consequences (e.g., the New York power failure). The security and privacy effect is the damage that can result from control in the hands of an enemy (e.g., the broken Japanese code of WW II which led to their defeat at Midway).
In recent years the advent of distributed computing systems has created a need for distributed OS's adequate to manage access control for their distributed resources. The component OS [Don79-6] for a single machine in a distributed computing facility (fig. 2a) generally has much less authority than did its omnipotent stand-alone ancestors. These component systems do control their directly attached peripherals but often must share access to most resources with other computers on a communication network (fig. 2b). The resource-access-control mechanisms possible in such a distributed environment are considerably more restricted than those available to stand-alone systems.
The problem of software interconnection has not been too serious for new services added to the network (e.g., hardcopy output, mass storage) because they only need to support one service protocol. For new general-purpose or worker systems, however, the problem of interfacing with all of the service protocols has become prodigious, particularly when contrasted with the relative ease of hardware interconnection made possible by modern broadcast bus technologies (fig. 2)[DoY76-7]. To correct this situation an effort has been undertaken at LLNL to develop an integrated set of network OS protocols. To solve the problems of general-purpose worker systems, these! protocols must be appropriate for use both across the network and between processes within a single multiprogramming system. To ensure that the protocols are effective in the time-critical environment within a single computer system, we have implemented a purely message-passing kernel inside of which most of our protocols are being tested [Don79-].
The protocols we have developed make up the Livermore Network Communication System (LINCS). Although LINCS includes protocols from the link level to the service levels [Wat79-27, FlW80-15, Don79-6, MiD80-20, DuB80-8], most of the development has been at the service levels where, unfortunately, effective international standards have not yet emerged. We review here some of the concepts developed at LLNL in the area of protocols for access control of distributed resources [DoF80-4].
The primitives that we utilize here consist of a simple bit-string or "bucket of bits" communication facility. We assume that the active elements capable of communicating (hereafter referred to as processes) are able to send and receive bit strings (messages) of unlimited length and that the messages can be addressed to and from an unlimited supply of network addresses. We assume that the issues faced by typical end-to-end and lower level protocols (error detection and correction, flow and congestion control, routing and identification, etc.) are properly handled by the message system [FlW78-14, Pos8O-24, Wat79-27].
Although the LINCS standard end-to-end protocol cannot afford to explicitly open and close virtual circuits [Fle79-13, FlW78-14], both it and the LINCS standard message system interface are designed to map directly to existing connection-oriented protocol standards such as the ISO standard ITT78 [ITT78-16] and the U.S. Defense Department standard TCP [Pos80-24]. The LINCS standards include a begin marker which may be interpreted as "open connection," an end marker which can close a connection, and an additional marker in the data stream that can be used for signaling or synchronization [Wat79-27].
For our discussion it will be convenient to have a single term to denote resource access. We will use the term capability [DeV66-3, Eng72-10, Fab74-11, Lan75-17, LaS76-18, Wul74-28]. We say that a process has a capability to a resource if it has been authorized access to the resource. A capability is thus a key that can unlock access to a resource. We define the domain of a process to be the set of capabilities that it possesses.
This use of the term capability is a generalization of the way it is often used in the discussion of capability-list (C-list) OS's [Lan75-17, LaS76-18, Wul74-28]. In C-list systems, capabilities do authorize resource access, but the term is generally restricted to refer to a specific form of capability implemented as some type of pointer that is protected by the kernel of a stand-alone OS. In such systems all communication and validation of capabilities (in this restricted sense) is mediated by the system kernel. This centralized approach to access control unfortunately does not extend well into a distributed environment [Don76-5, Don79-6].
Our purpose here is to explore the types of protocols suitable for capability passing and validation in a network OS. Our protocols must allow serving processes to give out capabilities to potential users in such a way that:
Because the right of access to any resource must originate from within the domain of the serving process, all capabilities must be passed at least once - namely, from the service process to a using process - to be of any use at all. To handle this "first-pass" situation, some OS's have used the expedient of a "pass-once" capability [BaH77-1]. Since a stand-alone OS can arrange to monitor capability pointer passing, it can mark "pass-once" capabilities as unpassable after they have once been passed from their service process to a user. In addition to being somewhat awkward, however, these attempts to restrict capability passing have the disadvantage that they can never really work. They can only work in the limited sense of the term capability discussed above (a pointer protected by a stand-alone OS), but not in the more functional sense (that we have adopted) of granting the right to access a resource.

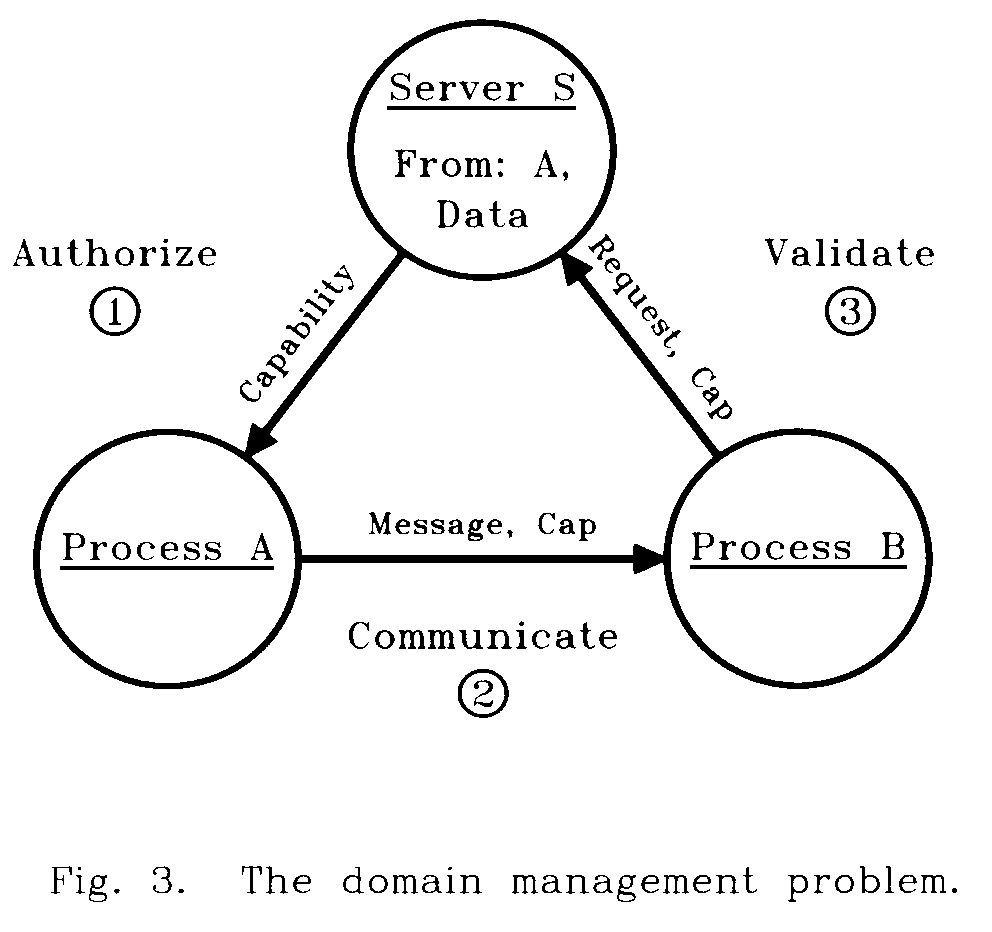

To see the difficulty of restricting capability passing, we need only consider processes A, B, and S pictured in fig. 3. Suppose that A has a capability to a resource serviced by S. Also suppose that A can communicate with B (if not, then A cannot pass anything to B, so no special capability-passing restriction is necessary). If a monitoring OS kernel has denied the mechanism for passing direct access to a resource from A to B, A can still give B the right to indirect access. A can simply have B send all its service requests to A for forwarding to S. A will also have to return the results of such requests to B.
In some cases passing indirect access is a useful mechanism: for example, in cases where A wishes to monitor or filter B's accesses to a resource or where A wishes to be able to cut off B's access at a later time. In many other cases, however, the inability to pass direct access simply places an unnecessary additional communication burden on the passing process.
Because it is our intent to make the domain-management protocols we consider as convenient as possible, and because it is not possible to effectively outlaw capability communication, we will only consider protocols that support the direct communication of resource access. Indirect capability passing is always available to any process that chooses to use it in lieu of direct passing.
When a service process receives a request for resource access, it receives two pieces of information that can be used for capability validation (fig. 3): first, the message data (the string of bits), and second, the address of the sender (remember, we assume that our communication primitives validly identify the addresses of sending processes). These two pieces of information naturally give rise to two basic approaches for capability validation which we call data authorization and address authorization.
Password-controlled capabilities are easy to communicate. To pass the right to access a password-controlled capability from one process to another it suffices to pass the capability data block (including its password) in a message (fig. 3).
The problem of data theft is especially serious in light of typical programming practices. It is quite common, when debugging programs, to output pieces of program memory in order to examine them for inconsistencies. If such memory output contains password-controlled capabilities to sensitive resources, then it must be carefully protected (e.g., not taken to a consultant for analysis or left in view of visitors).
Communicating access-list-controlled capabilities is more difficult than communicating password-controlled capabilities (fig. 4). The basic difficulty is that the service process must update its access list every time a capability is passed from one using process to another. To do this the serving process must be notified that the capability transfer is taking place.
Unfortunately, these steps do not quite suffice for secure capability passing. To understand what goes wrong we must make a more careful assessment of what is meant by our requirement that capabilities can be communicated from one process to another.
Capability communication must allow a process that lacks a capability to receive it in a message. In addition, however, if the analogy to receiving data is allowed, receiving a capability in a message should imply that the sender possessed the capability. Although this is a property of our trivial protocol for communicating password-controlled capabilities (the capability and its data block are identical), it is not a properly of the access list protocol pictured as steps 1, 2, and 3 in fig. 4.
To demonstrate this point, consider the reflector process illustrated in fig. 5. The reflector just receives capabilities in messages and returns them to the sender. Various servers, such as those for directories, translators, editors, etc., have this basic reflection property. Unfortunately, if the access list protocol above is used, then the sneak pictured in fig. 5 can obtain unauthorized access to all the reflector's resources simply by reflecting their identification information. We will see a similar reflection problem appear in conjunction with data theft when we consider control by public key encryption.
This access list protocol can be repaired by replacing step 2 in fig. 4 by the illustrated step 2* A process receiving a capability can be thus assured by the server that the sender did indeed possess the capability.
Although the access list protocol does eliminate the data theft danger of the password protocol, it has a number of difficulties of its own:
Controlling capabilities by public key encryption is similar to password control in one respect: If c is the identification information for the resource, then any process able to obtain the data Suc is assumed to have the right to access the resource. That is, if a process can produce a capability description "signed" by the server, then the capability is assumed to be valid. To guarantee that random data will not be interpreted as a valid (random) capability, we include the server's public key, Sd, in the capability description, c. Since the server's public key must also be included in the clear text of the capability data block (along with the server's address), any process can check a capability for validity by removing the server's signature (Su) and looking in c for its public key Sd.
If processes just store and communicate Suc directly, they are in danger of losing their capability to data theft. A process A can protect its capability from data theft during storage by applying Ad, and storing it as AdSuc.
To communicate a public-key-encrypted capability from A to B, it might appear sufficient for A to transform its stored AdSuc with BdAu. This would remove A's protection from Suc and reprotect it for B. Unfortunately, however, this simple form of capability communication can not assure B that A was actually authorized to access the resource. If A could steal the capability data block from B's domain, it could reflect it off B (send it to B and ask for it back as in the reflection example given previously) and thereby gain unauthorized access. Similarly, if a process could steal the capability from A after it had been readied for transfer to B, it could be reflected off B to obtain unauthorized access.

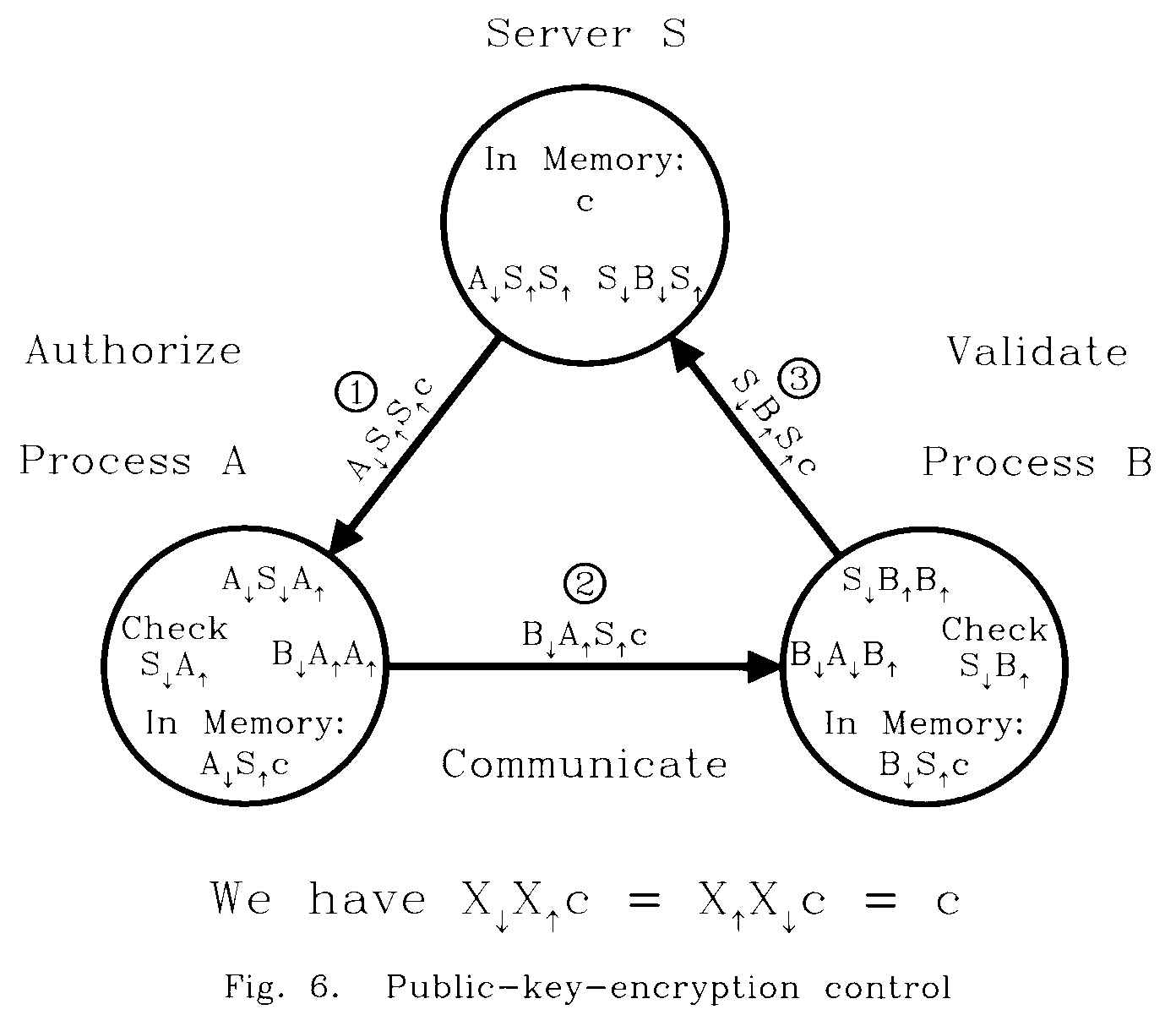

These difficulties can be remedied by performing the sending and receiving transformations pictured in fig. 6. Process A sending a capability to process B transforms its stored AdSuc with BdAuAu. The first Au removes A's protection; the second Au signs the capability as coming from A; and the final Bd protects it so that it cannot be stolen from B's domain when it arrives.
When B receives a capability from A, it transforms the received BdAuSuc with BdAdBu. The first Bu undoes the protection that A put on for B, the middle Ad unsigns the capability, and the final Bd protects the capability for residence in B's domain. To avoid the capability reflection problem, B must check to insure that A possessed the capability before the communication. To do this B can "look" at the clear text of the capability, c, by performing the transformation SdBu on the stored BdSuc. B must check c for the included key, Sd. Fig. 6 follows the transformations performed as a capability c passes from a server S to A, then to B, and finally back to S for validation.
It might appear that looking at the clear capability c would open it up to data theft. However, no process able to steal c would be able to produce the Suc needed to access the resource (except S).
Since the receiving algorithm unsigns the capability, one might hope - as I did - that the check for Sd in c would be unnecessary. It was pointed out, by Jim Ellison [Ell81-9] and others, however, that reflection will remove protection if the capabilities are not checked. For example, if a process X is able to steal the form of a capability stored in B and reflect it off of B without check, the result would be XdBuXdSuc. This can be transformed by X into the valid capability XdSuc.
An important requirement of this protocol is that its transformations (receiving, looking, and sending) be indivisible. That is, intermediate results must not appear in the memories of processes from which they might be stolen. For example, if the transformation BdAuAu(AdSuc) were to yield the intermediate result Suc in memory after the first Ad, the integrity of the protection could be breached.
The private encryption key and the intermediate results can be protected in several ways. For example, in a multiprogrammed OS component the transformations can be performed by the OS kernel in response to a virtual user instruction (only the kernel knows the process's private decryption key). In a smaller single-domain system (e.g., a microprocessor system), it might prove effective to have the transformations performed in a hardware device that alone knows the system's private decryption key.
It has been pointed out elsewhere that in many situations the problem of distributing public encryption keys is as severe as that of distributing secret keys [PoK79-23]. The difficulty comes from trying to match a public key with some previously identified entity. For example, is this public key really that of the person with whom I intend to correspond? Fortunately this difficulty is not present in the capability protection mechanism discussed here because the public keys are distributed in the capability data blocks. It is true that a sender of a capability can endanger a trusting receiver by passing it a bad capability (e.g., with a bad public key). This is simply an instance of the well-known Trojan Horse problem, however, and is necessarily present in the best of capability management mechanisms.
This public key protocol has the same strength against data theft as the encrypted-address scheme but requires no extraneous message passing. Its major weakness is the processing costs involved in the transformations required. It depends, of course, on the existence of a suitable public-key encryption algorithm.
All of our example capability-passing protocols can be divided into three analogous parts: the communication proper, the sending transformation, and the receiving transformation. The communication proper is simply a matter of communicating the capability data block (including the server's network address and the server-dependent information). The sending and receiving transformations break down as pictured in Table 1.
Table 1 Sending and Receiving Transformations for the Capability-Passing Protocols ________________________________________________________________________ Protocol Sending Receiving ________________________________________________________________________ Password None None Access list or Request server to Receive authorization encrypted address forward from server authorization Public key A to B BdAuAu BdAuBu to check c, then BdAdBu to storeTo integrate these protocols into a common structure, we can supply each capability-passing process with library routines for the sending and receiving transformations that can handle the three distinct forms. The stored capability data block and the address to which the capability is to be sent are passed to the routine SendTransform. It returns a capability data block suitable for direct transfer. The capability data block must always keep a description of the form of protection that it uses in clear text. This protection form description allows the transformation routines to dynamically decide which kind of protection method is in use and thus which transformations to perform.
The received capability data block and the address from which the block was received are passed to the routine ReceiveTransform. It checks the capability (if necessary) and returns the transformed capability data block in a form suitable for storing in the domain of the receiving process.
From a computer's point of view we are simply input. The input that we supply goes into the domain of some process. Generally when we begin to use a computer system our input is read by some powerful process that can identify us and make sure that we are given access to only our authorized resources. This "login" mechanism has been discussed ad nauseam elsewhere so we will not consider it further here.
Once we are identified, however, we begin communicating with a process that (unfortunately) must have access to all of our resources so it can satisfy our requests. Generally the program in this process (e.g., an OS command language, job control language, or terminal input language processor) does little work by itself, so it is usually quite trustworthy. Whenever we want anything done, however, it gives some of our resources to some other utility process to carry out our bidding. This is where our human domain management becomes important.
It is difficult to understand why people seem to trust computers so implicitly. They certainly don't trust us if they can help it. Perhaps people feel they have no choice. With many computer systems this is true, but it need not be. Why give programs that do our bidding a chance to waste resources (economy), mess up resources (reliability), or give resource access to our enemies (security and privacy)? If we have adequate protocols for process domain control, we can give processes working on our behalf exactly the resources they need in order to do our bidding.
a. Explicit Resource Specification
Using this approach, a person would explicitly name each resource or resource group that should be given to a utility process. Since parameter information is usually required by utilities in addition to their required resources, resource specifications would have to be distinguished syntactically. An approach such as this could be facilitated by passing some resources by default or with a shorthand notation. In spite of such efforts, however, this approach would likely prove inconvenient for users. The simple expedient of passing all resources to every utility would probably be the norm.
b. Let the Utility Choose
With this approach utilities would request needed resources from the command interpreter, either directly or by instructing it how to parse the user's request. This approach, might keep utilities from inadvertently doing harm to a person's resources, but it still leaves every utility in the position of a Trojan Horse.
c. Canned Command Parsing Specifications
With this approach, the command interpreter is given predefined procedures for parsing the user's commands to decide which resources to pass to utilities. These parsing specifications might come in the form of macros or tables for a table-driven parser. The specifications should be generated or at least reviewed by a trusted person (if you can't trust a systems programmer, who can you trust?). People can use any convenient command syntax with blissful indifference and still be protected from inadvertently or maliciously destructive programs. A difficulty would arise only if someone were given a new utility and parsing specification as a gift. Anyone that would use such a gift specification without review would knowingly submit to a potential Trojan Horse. Let the user beware.
Such precise control cannot be fully exploited if people are not able to conveniently use it to protect themselves from inadvertently or maliciously destructive processes. We have described a promising approach for human management of process domains.
The problem of domain management is common to all computer systems, but it is particularly important in distributed systems. This problem can only be squarely addressed and solved if it is disentangled from the jungle of details needed to make resources available in distributed systems.
This work was performed under the auspices of the U.S. Department of Energy by the Lawrence Livermore National Laboratory under contract number W-7405-Eng-48.
